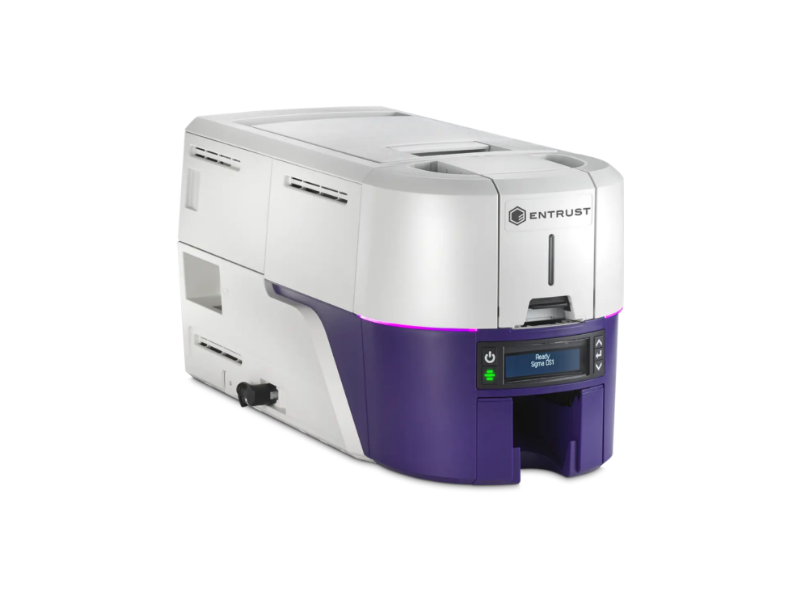

Entrust Sigma DS2

The identity issuance industry is changing thanks to the Sigma DS2, a leading-edge single-sided printer. As the global leader and pioneer in identity solutions, we are redesigning systems to meet contemporary requirements, facilitating the easy issue of the most secure identities worldwide. The exceptional security and ease of use of Sigma DS2 make it rather remarkable among the top-tier solutions in the industry.

  • Out of Box Experience: Reduces the complexity and frustrations of unboxing, specifically engineered to start the ultimate printing experience.
  • Printer Dashboard: Monitor printer status, order supplies, check cleaning status, update firmware, or contact help, all on your mobile device.
  • Issuance Flexibility: Easily issue IDs with software in the cloud or on-premises, offering unmatched flexibility.
  • Unmatched Security: Ensure data safety with encryption technology, TPM Module, and Secure Boot, providing unmatched security against intruders.
  • Purposeful Design: Integrates seamlessly into your physical environment with features like variable light LED ring, ensuring a purposeful design.
  • Physical & Digital: Ability to issue both physical IDs (cards) and digital IDs (mobile flash passes) simultaneously, offering both physical and digital authentication options.

Feature Details
Print Technology Dye-sublimation / resin thermal transfer
Print Capabilities Single or dual-sided
Print Resolution 300 dots per inch (dpi) (300 X 600, 300 X 1200)
Monochrome printing
Print Speed Up to 880 single-sided cards per hour
Single-sided color ribbon – up to 225 cards per hour (cph)
Double-sided color ribbon – up to 140 cards per hour (cph)
Card Capacity Input hopper – up to 125 cards
Output hopper – up to 25 cards (up to 100 optional)
Reject hopper – up to 10 cards
Card Sizes Card input size:
Thickness – 0.010 inches to 0.040 inches (0.25mm – 1.016mm)
Dimension – ID-1, CR-79, CR-80
Operating Environment Temperature: 60°F to 95°F (15°C to 35°C)
Humidity: 20-80 % RH – non condensing
Physical Dimensions L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm
Weight 12.1 lbs (5.49 kg); with options will vary
Connectivity USB & Ethernet
Warranties 36 Months
Web browser support for Instant ID as a Service Chrome – Preferred
Edge/Internet Explorer
Safari
Operating system support for printer driver Windows 11
Windows 10 versions, 32- and 64-bit
Windows 8.1, 32- or 64-bit
Windows Server 2019
Windows Server 2016
Windows Server 2012, R2, 64-bit
Optional Features and Supplies Magnetic Stripe Encoding
Wi-Fi
Smart Card Encoding
Color Ribbons
